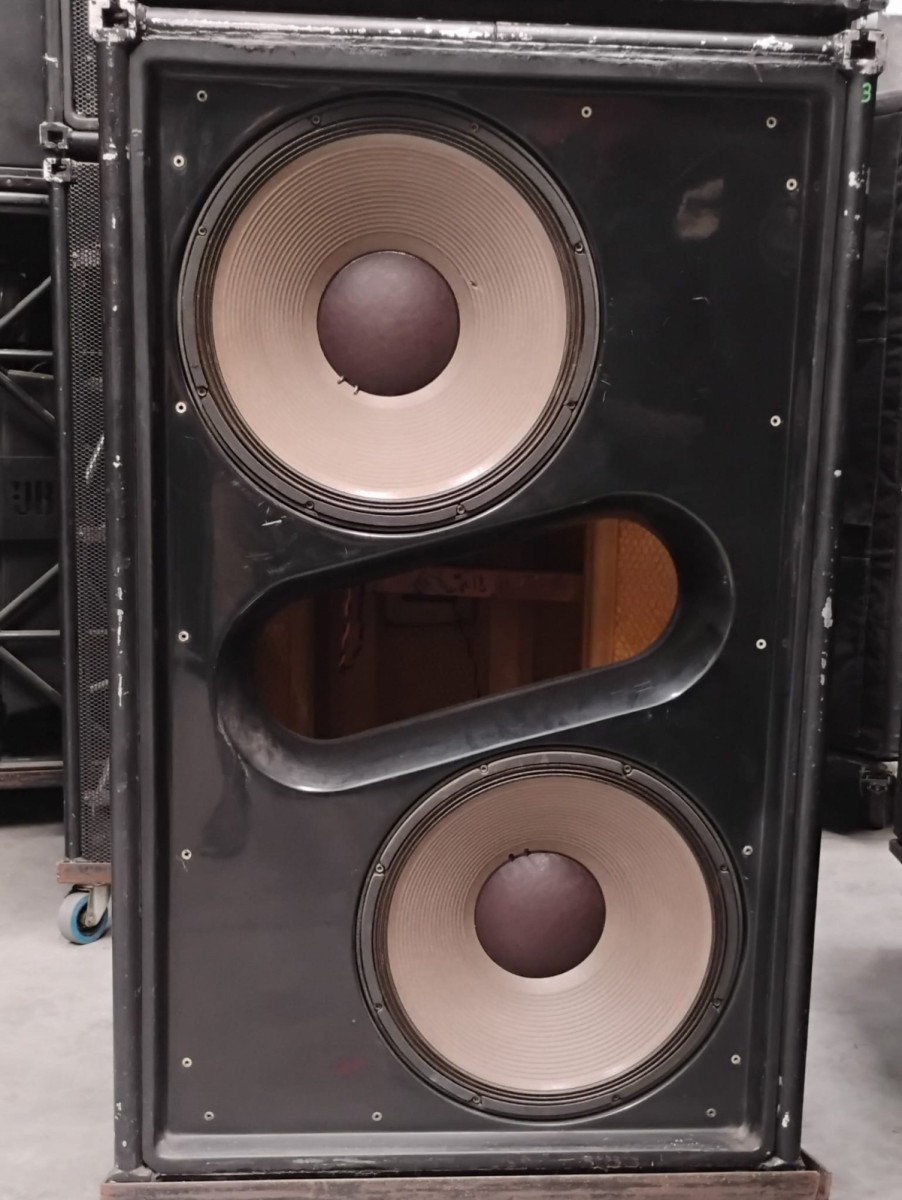

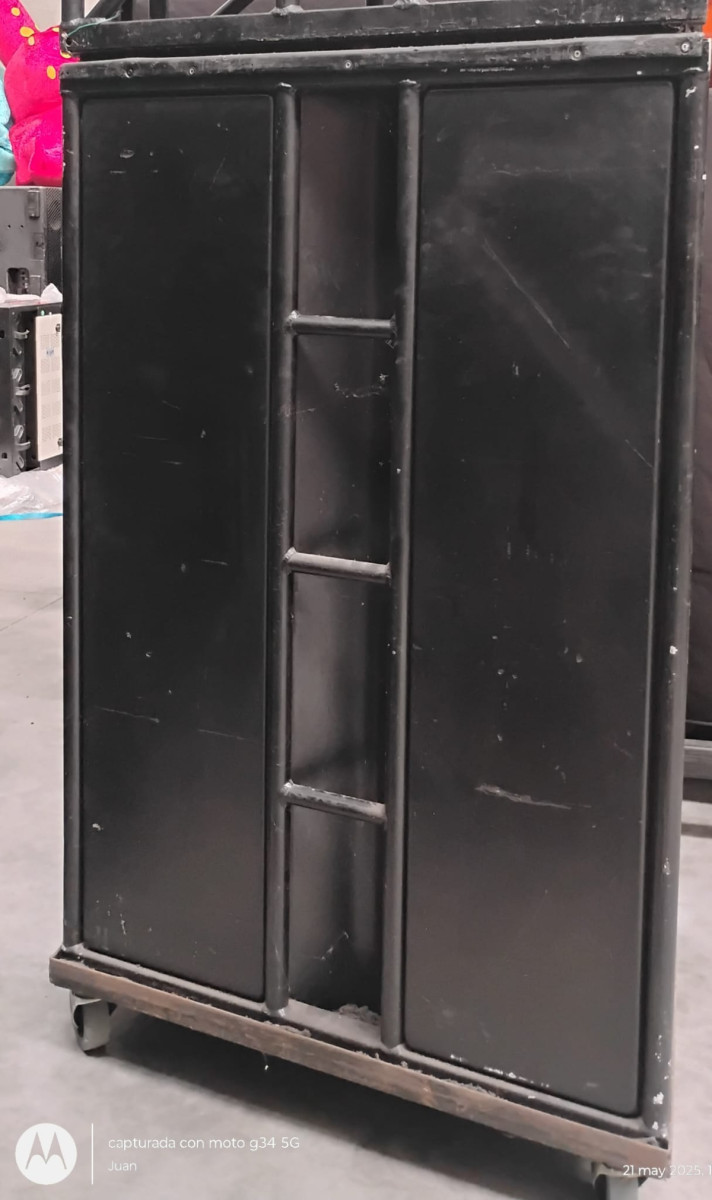

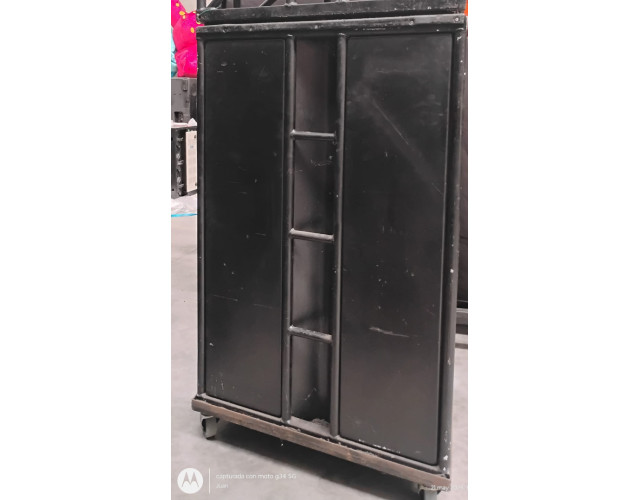

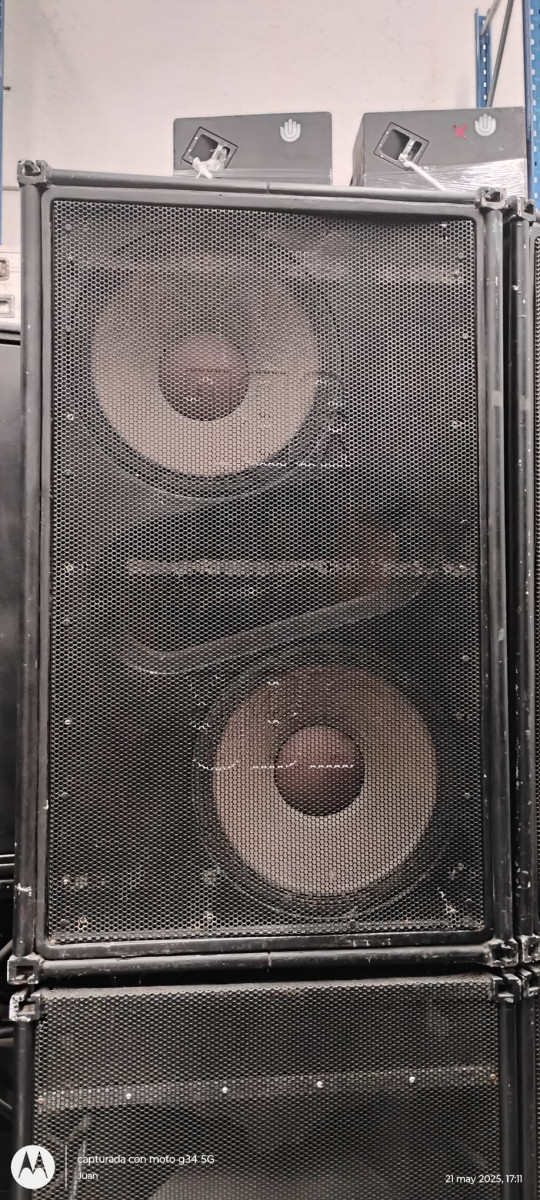

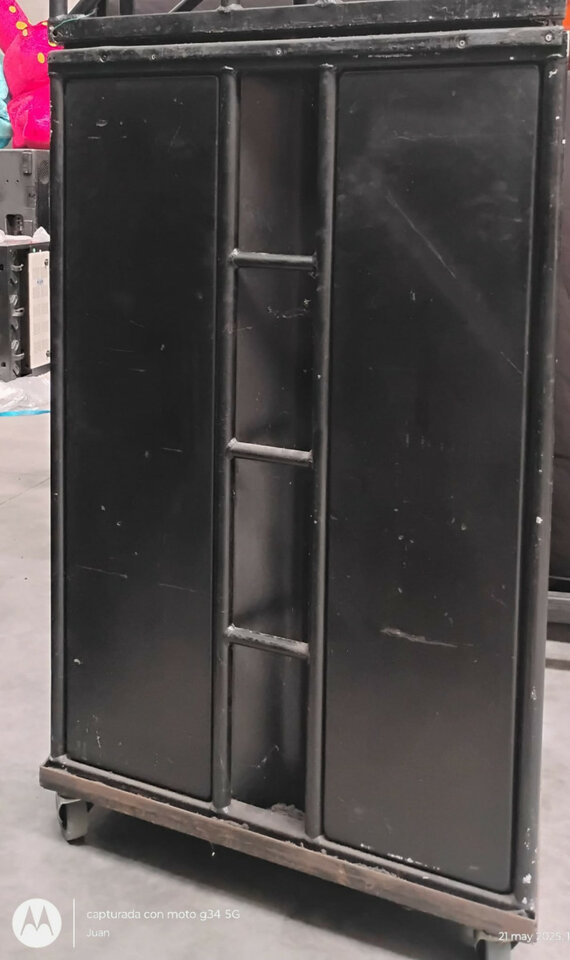

CAJA JBL 4897

System
Frequency Response (±3 dB)¹: 34 Hz-150 Hz
Maximum Peak Output: 138 dB @ 1m
Recommended Bandpass: 27 Hz, 120 Hz
Transducers
Low Frequency: Two 2242H, 457 mm (18 in) dia., 100 mm (4 in)
Super Vented Gap
Nominal Impedance: 8 Ohms each Transducer
Input Power Rating (each Transducer): 800 W, AES
Sensitivity: 98 dB, 1 W, @ 1 m (3.3 ft), 35-120 Hz
Enclosure/SpaceFrame™ Trapezoidal, 15° Side Angle, 6061, T6 Aluminum,
Carbonfiber/Honeycomb Foamcore/glassfiber
Composite
Flying System: I Beam Connecting Bar, Lifting Bar
Grille: Black Perforated Steel, Foam Backed
Input Connectors: NL8, or Options
Dimensions (HxWxD): 1333 mm x 838 mm x 889 mm (52.5 in x 33 in x 35 in)
Net Weight: 109 kg (240 lbs)
Shipping Weight: 116 kg (255 lbs)
