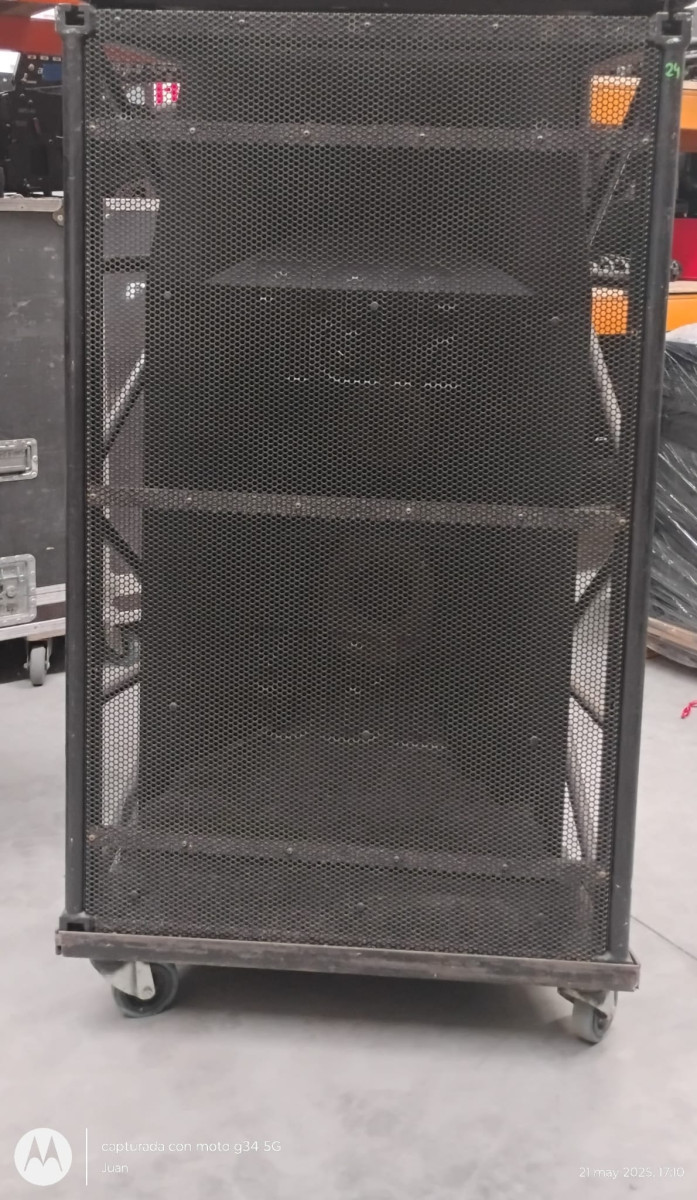

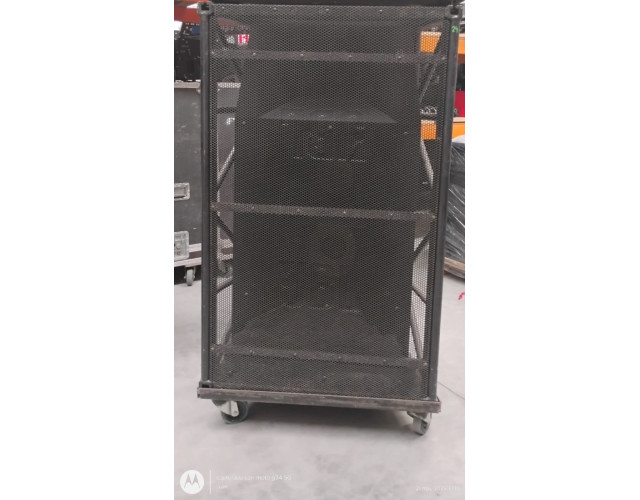

CAJAS JBL4895

Frequency Response (±3 dB)1: 110 Hz-18 kHz
Hor. Coverage Angle (-6 dB): 40° average, 315 Hz to 16 kHz
Vert. Coverage Angle (-6 dB): 30° average, 315 Hz to 16 kHz
Directivity Index (DI)/Factor (Q): 13.5/23 average, 315 Hz to 16 kHz
Maximum Peak Output: 140 dB @ 1m
Recommended Controller: DSC280, Multiple HLA 4895 Tunings in Memory
Transducers
Low Frequency: 2254J, 355 mm (14 in) dia., 76 mm (3 in) DCDTM
Differential DriveTM, Direct CooledTM
Nominal Impedance: 16 Ohms
Input Power Rating: 600 W, AES
Sensitivity: 107 dB, 1 W, @ 1 m (3.3 ft) (In waveguide)
Mid Frequency: 2251J, 355 mm (10 in) dia., 76 mm (3 in) DCDTM
Differential DriveTM, Direct CooledTM
Nominal Impedance: 16 Ohms
Input Power Rating: 400 W, AES
Sensitivity: 107 dB, 1 W, @ 1 m (3.3 ft) (In waveguide)
High Frequency: 2451SL; 100 mm (4 in) Titanium diaprhagm and voice
coil dia., 38 mm (1.5 in) throat dia.
Input Power Rating: 16 Ohms
Input Power Rating: 75 W, AES
Sensitivity: 116 dB, 1 W, @ 1 m (3.3 ft) (In waveguide)

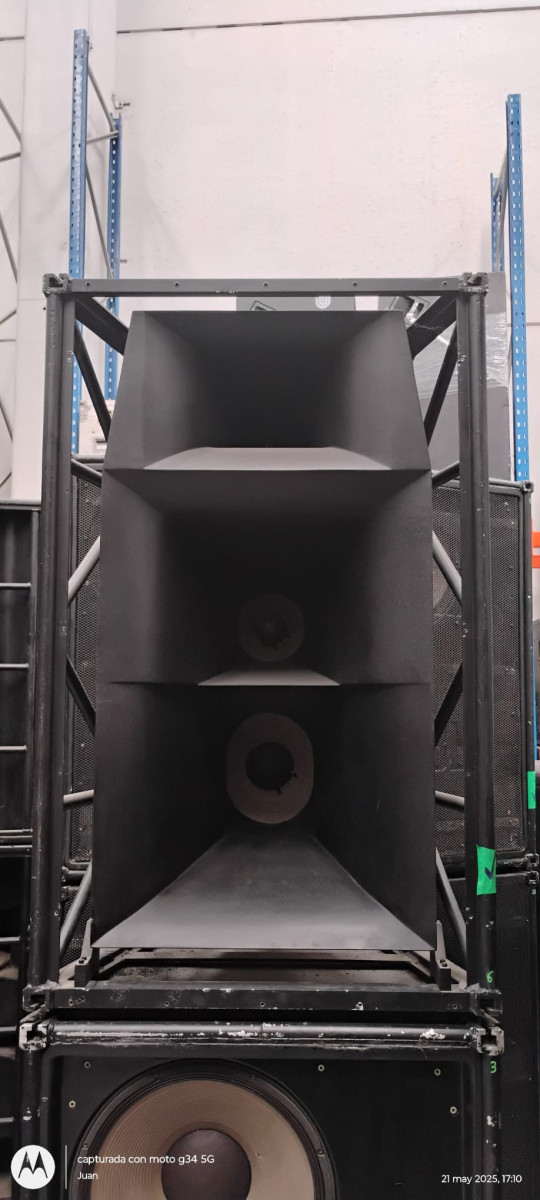

Waveguide/SpaceFrameTM Trapezoidal, 15° Side Angle, 6061, T6 A1 Aimable
waveguide (Quick Locking, 15°)
Flying System: I Beam Connecting Bar, Lifting Bar
Grille: Black Perforated, Foam Backed
Input Connectors: NL8, or Options
Dimensions (HxWxD): 1333 mm x 838 mm x 889 mm (52.5 in x 33 in x 35 in)
Net Weight: 104.5 kg (230 lbs)
Shipping Weight: 113.6 kg (250 lbs)
