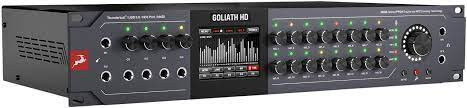

Antelope Goliath HD

ANALOG
Analog Inputs
• 2 × DB25 (16 channels total), +24dBu, 56 Ohms
• 16 × Mic / Line on XLR combos
• 4 × Hi-Z 1/4″” TRS

Analog Inserts
2 × Inserts on 1/4″ TRS (dedicated for inputs 1, 2)

Analog Outputs
• 4 × DB25 (32 channels total), +24dBu, 56 Ohms
• 1 × Stereo pair of Monitor outs on 1/4″” TRS
• 2 × Stereo Headphone outs on 1/4″” TRS
• 2 × ReAmp outs on 1/4” TRS

D/A Monitor Converter
Dynamic Range: 132dB
THD + N: -108dB

A/D Converter
Dynamic Range: 124 dB
THD + N: -112 dB

D/A Converters
Dynamic Range: 129 dB
THD + N: -120 dB

Mic Preamp
Gain: 0,10 – 65 dB
THD + N: -112 dB

DIGITAL
Digital Inputs
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 × AES/EBU (8 channels)
• 2 × MADI

Digital Outputs
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
• 1 × AES/EBU
• 2 x MADI

USB I/O
USB 3.0 Super-Speed, Type B connector

Thunderbolt™ I/O
1 x Thunderbolt™ Gen2

HDX
2 x mini HDX connectors for direct Pro Tools connection, 32 Channels I/O each (total of 64 channels)

CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC

Atomic Clock Input
1 x 10M Input @ 75 Ohms 1Vpp on BNC

Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC

Clocking System
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator

Clock Stability
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging
< 1 ppm per year

Clock Calibration
< +/-0.001 ppm

Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER
Operating Temperature
0-50°C, 32-122°F

Weight
6.8 kg/ 15 lbs (approx )

Dimensions (approx)
• Width: 483 mm / 19”
• Height: 81 mm / 3.2”
• Depth: 279 mm / 11”

Electrical specs
AC Universal input: ~95-245 V
Power Consumption: 50 Watts Max
