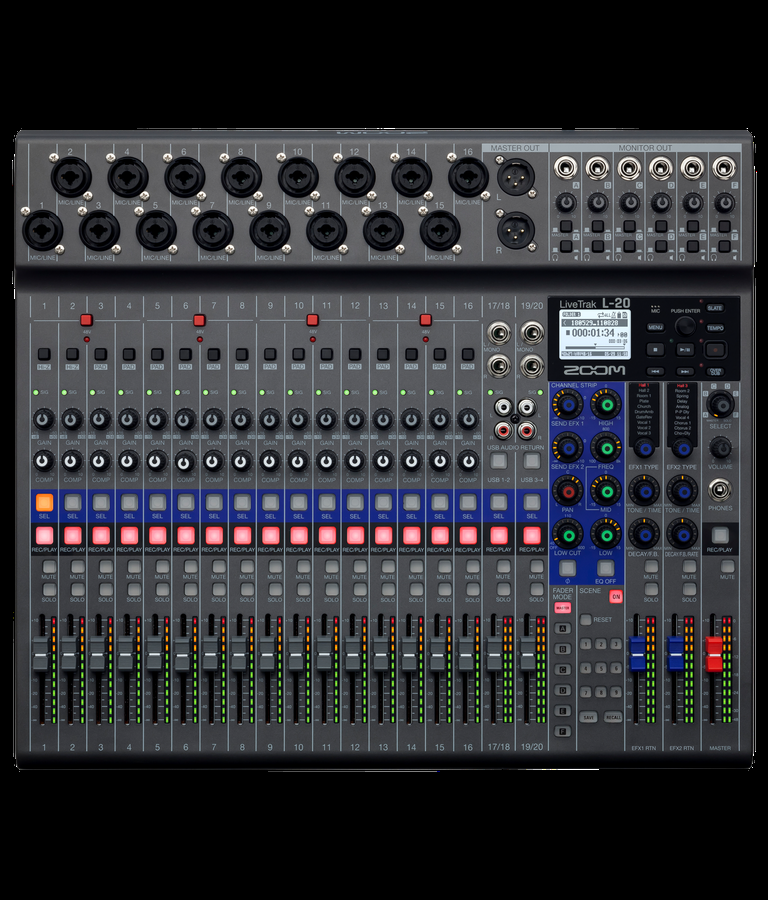

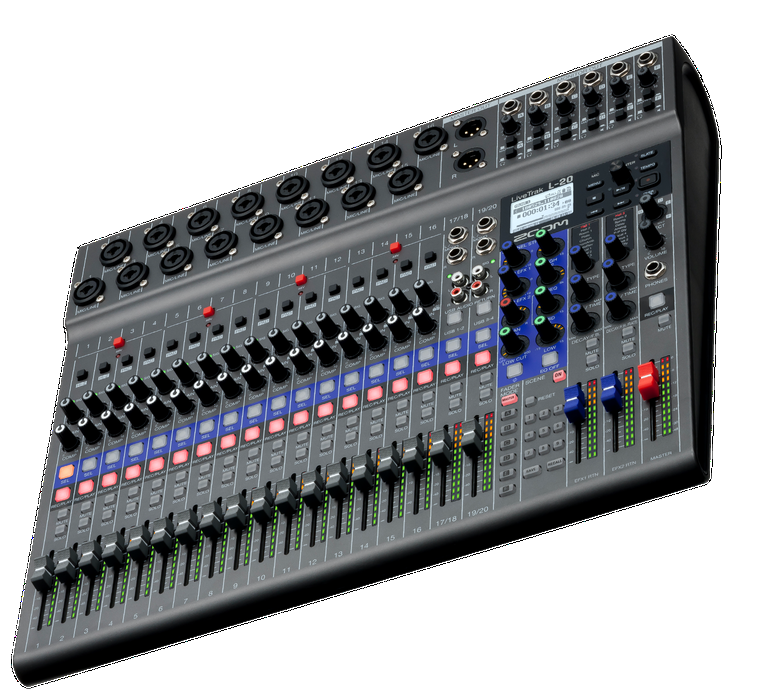

Zoom LiveTrak L-20

Combined Mixer, Audio Interface and Recorder
20 Discrete channels
16 Mono plus 2 stereo channels with XLR and 1/4" phone jacks
Simultaneous recording of 22 tracks
Playback of 20 tracks
USB audio interface with 22 inputs and 4 outputs
Audio recording up to 24-bit / 96 kHz on SD storage media
48 V phantom power
Hi-Z Connectors (channels 1-2)
26 dB Pad (channels 3 to 16)
Compressor per channel with one knob (channels 1 to 16)
Solo and mute buttons for each channel
Low cut per channel between 40 - 600 Hz variably adjustable
Sum outputs and six configurable monitor outputs
Monitor outputs can be configured as headphone output or normal line-level output
Additional separate headphone output
Memory function for up to nine mixer scenes
20 Internal, editable chorus, delay and reverb effects
Two effect buses
Built-in talkback microphone
Pre-record function
Class-compliant operation (for iOS compatibility)
Automatic start and stop recording possible
Import and export of projects via the USB 2.0 interface
Compatible functions for the ZOOM FS01 footswitch
Dimensions (W x D x H): 445 x 388.4 x 82.6 mm
Weight: 3.71 kg
Includes power supply (AD-19), USB 2.0 cable and quick start guide
