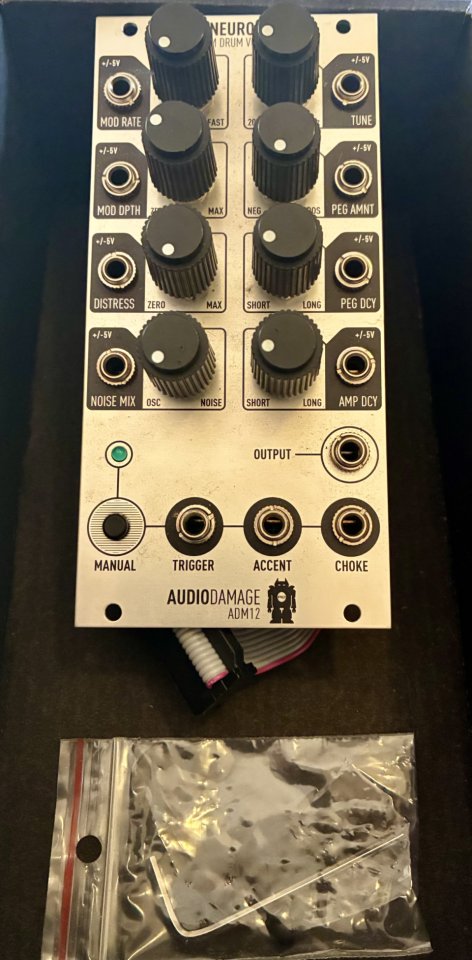

Eurorack Neuron FM drum voice

The main features of the Audio Damage ADM12 Neuron FM Drum Synthesiser Module include:
DSP-based module
Sample rate (depth): 48 kHz (24-bit)
Two-operator FM synth voice
Carrier waveform is a single-cycle sample of a 909 kick's main oscillator
Two ultra-fast percussion-curved internal envelopes
Soft saturation/overdrive and distortion control
Internal noise generator
Trigger input fires the internal envelopes on a 1V edge detection
Accent and Choke inputs allow further time-based control over the output
Every control has a CV input that accepts +/-5V
USB port (on the backplane)
Power draw: 50ma from the +12V rail & 9ma from the -12V
