Onyx: cómo cambiar los colores de los presets

Consulta
alesoundtech
#1 por alesoundtech el 03/12/2021

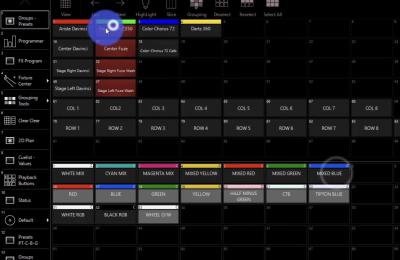

Hola! Tengo una duda existencial con los colores de los PB o presets de Onyx, es decir no tengo ni idea de como cambiar dicha barrita que tienen encima, adjunto foto para que os hagáis una idea. Básicamente para poder asignar yo el color que me sea más cómodo como aparece en la imagen.

Gracias!
Archivos adjuntos ( para descargar)
Subir
OFERTASVer todas
  • beyerdynamic DT-770 Pro
    138 €
    Ver oferta
  • -21%
    Zoom H4n Pro Black
    158 €
    Ver oferta
  • -40%
    ¡Precio mínimo histórico! AKAI MPK 261
    298 €
    Ver oferta
Soyuz mod
#2 por Soyuz el 04/12/2021
Diría que la solución la tienes aquí: https://support.obsidiancontrol.com/Content/Presets/Color_Coding_Presets.htm

Obsidian Onyx escribió:
The Preset color option is completely user definable and is shown in this instance with a matching color labels on the presets defined by the color stored inside them.

The Grid Color defines the color of the directory grid and its outlining text & buttons.

The grid color only pertains to the specific tab in which it is assigned, so the each parameter group's grids can all be different colors. You are free to enable both options simultaneously.

To Color Code the Preset Buttons:

Open the Preset window.
Press the Options "Gear" icon in the right hand corner of the window.
Enable the Preset Color option and press the Change Button associated with it.
A pop-up window shows a color picker as well as a number of predefined colors.
Press a Preset in the directory and then pick a color from the options.
Repeat the process of pressing a Preset, then applying a color to color code the desired Presets.
To finish, close the pop-up color picker by pressing the X icon in the top right corner. The Presets will retain their color settings until either the color is changed, or the option is turned off again.
To Color Code the Preset Grids:

Open the Preset window.
Press the Options "Gear" icon in the right hand corner of the window.
Enable the Grid Color option and press the Change button associated with it.
A pop-up window shows a color picker as well as a number of predefined colors.
Choose a tab to color code using the options on the left hand side, note that each tab can have a different color if desired.
Once finished, close the window using the X icon in the top right hand corner, the tabs will retain their grid color options until either they are changed, or the option is disabled.
