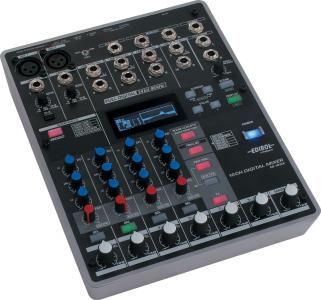

[attachment=0:10yc5ax1]Edirol M-10DX.jpg[/attachment:10yc5ax1]
Edirol M-10DX
Phonix no... Behringer tampoco, Peavey menos....
Consolas, recomiendo estas por experiencia.
M Audio, Edirol de Roland, Yamaha, Soundcraft, Spirit de Soundcraft, Tascan y Makie
En especial esta
Edirol M-10DX
La EDIROL M-10DX es un Mezclador de 10 canales con las especificaciones técnicas de la M-16DX
EQ de 3-bandas con controles de Q y Frecuencia con display grafico de LCD para ajustes precisos
Portátil, diseñada para ser una todo terreno
Room Acoustic Control para ajuste automático de salas incluyendo 2 salidas en formato jack TRS 1/4
Incluye efectos de alta calidad incluyendo efectos de insercion COSM, reverbs y efectos de finalizer
I/O analogicas y digitales, incluyendo dos previos de micro de alta calidad
Puede funcionar a pilas o con Adaptador AC ya incluido
Number of Input Channels 10 channels
AD/DA Conversion 96.0 kHz: 20 Hz to 40 kHz (+3/-3 dB), 48.0 kHz: 20 Hz to 22 kHz (+3/-3 dB), 44.1 kHz: 20 Hz to 20 kHz (+3/-3 dB)
Residual Noise Level (IHF-A, typ.) MAIN MIX LEVEL knob = -∞, Channel LEVEL knobs = -∞, MAIN MIX LEVEL knob = U, Channel LEVEL knobs = -∞: -88 dBu, MAIN MIX LEVEL knob = U, Channel LEVEL knobs = U: -82 dBu
Nominal Input Level MIC connectors 1–2: -60 to -10 dBu, LINE IN jacks 1–2: -40 to +10 dBu, * Maximum input level: Nominal input level + 22 dB, LINE IN jacks 3–10: +0 dBu, LINE IN jacks 9–10 (RCA pin type): -10 dBu, * Maximum input level: Nominal input level + 18 dB
Input Impedance MIC connectors 1–2: 2.7 kΩ, LINE IN jacks 1–2: 28 kΩ, LINE IN jacks 3–8: 20 kΩ, LINE IN jacks 9–10 (RCA pin type): 20 kΩ
Nominal Output Level +0 dBu, * Maximum output level: Nominal Output Level + 22 dB
Recommended Load Impedance 10 kΩ or greater
Display Graphic LCD 122 x 32 dot (with back-light)
Connectors MIC connectors 1–2: XLR type (balanced / phantom power +48 V), LINE IN jacks 1–10: 1/4 inch TRS phone type (balanced), * LINE IN jack 1: supports use of hi-impedance, LINE IN jacks 9–10: RCA pin type, MAIN OUT jacks L–R: 1/4 inch TRS phone type (impedance balanced), AUX SEND jack: 1/4 inch TRS phone type (impedance balanced), 2 TRACK OUT jacks L–R: RCA pin type, DIGITAL OUTPUT jack/connector: Optical type, Coaxial type, PHONES jack: Stereo 1/4 inch phone type, CTRL ROOM jacks L–R: 1/4 inch phone type (impedance balanced)
DSP processing Room Acoustic Control (built-in microphone), Finalize: Enhancer/Multi-band Compressor-Limiter, Insertion effects: Power compressor/Vocal enhancer/Narration enhancer, Echo/Reverb: Short echo/Echo/Room reverb/Small hall reverb/Large hall reverb
Power Supply DC 9 V (AC adaptor), Alkaline dry battery LR6 (AA) type x 8 or Nickel metal-hydride battery (HR15/51) x 8
Current Draw 950 mA, * Expected battery life under continuous use: Nickel metal-hydride: 3 hours, Alkaline: 1.5–2 hours, These figures will vary depending on the actual conditions of use.
Phantom Power +48 V/5 mA (each input)
Accessories Owner’s manual, AC adaptor
Size and Weight
Width 199 mm 7-7/8 inches
Depth 262 mm 10-3/8 inches
Height 61 mm 2-7/16 inches
Weight 1.3 kg 2 lbs. 14 oz.
Busca los precios en
http://www.thefind.com para Estados Unidos
Yo la conseguí en US$139 , Normalmente cuesta US$400
